jianshe stator assembly fg-842000-0 js250 atv 93mm
18 Coil Stator Assembly FG-842000-0 for JS250 ATV - Image 2
18 Coil Stator Assembly FG-842000-0 for JS250 ATV - Image 3

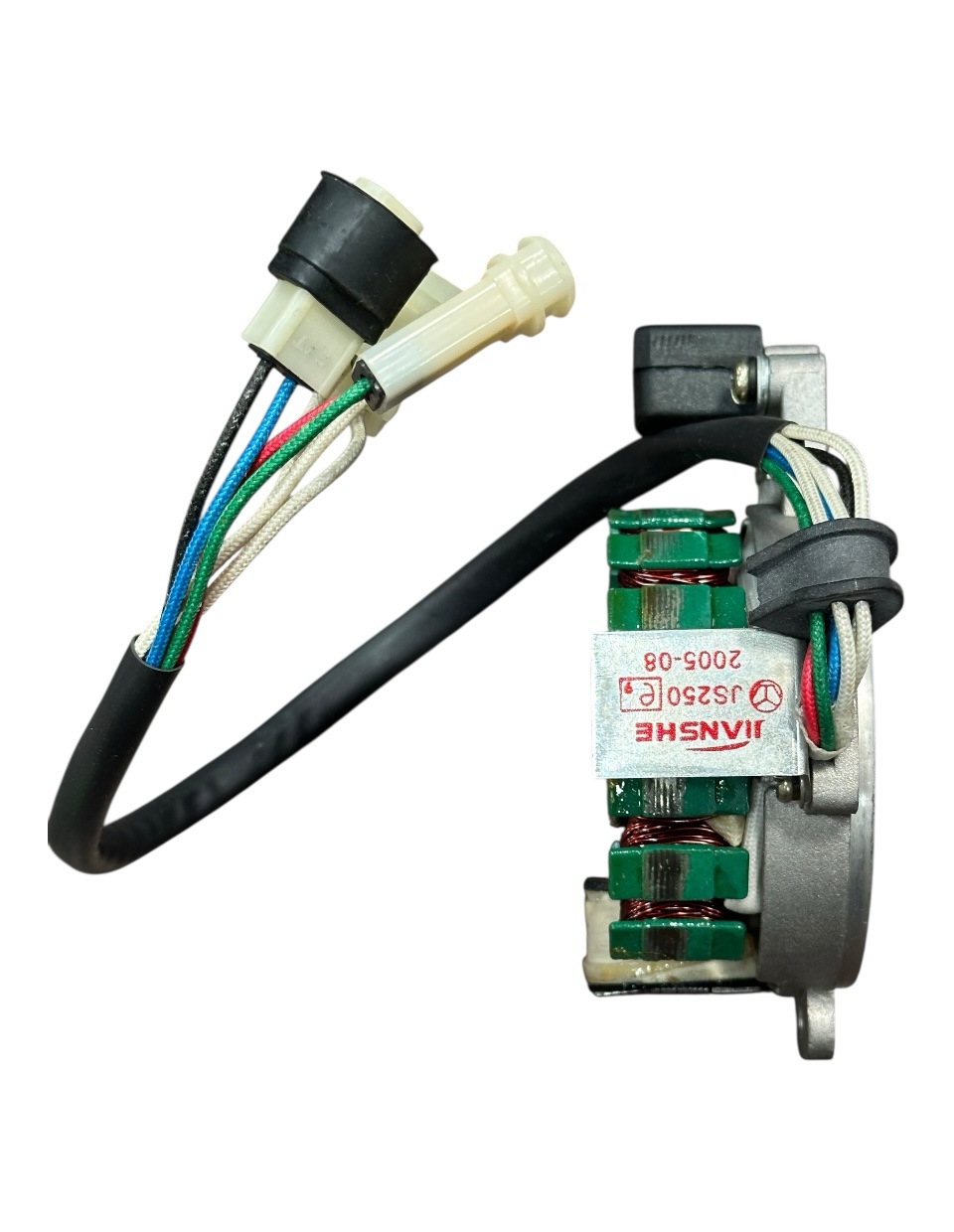

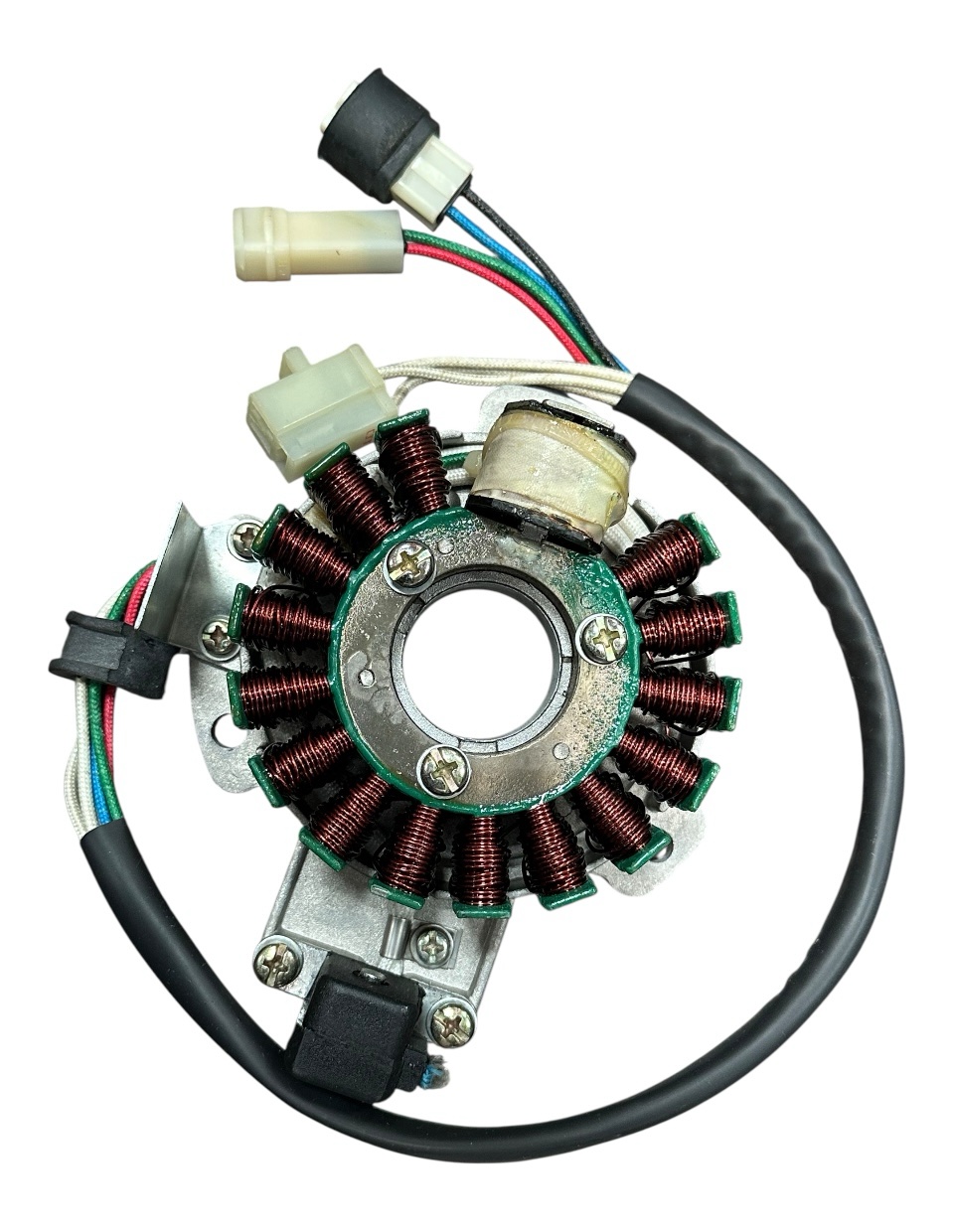

18 Coil Stator Assembly FG-842000-0 for JS250 ATV

$65.25

  • OEM stator for Jianshe JS250 ATV – FG-842000-0. 18 coils, 93mm x 35mm, 3-hole 90mm pattern. Genuine replacement for 250cc–300cc motors.

  • SKU: DP2619

  • Brand: Jianshe

  • Model: JS250 ATV

  • Part Type: Stator Assembly

  • Outer Diameter: 93mm

  • Center Hole: 35mm

  • Bolt Pattern: 3-bolt 90mm

  • Coil Count: 18

  • Wire Count: 5

  • OEM Part Number: FG-842000-0

SKU: DP2619 Category:

Description

OEM stator assembly for Jianshe JS250 ATV, part number FG-842000-0. This high-output 18-coil unit features a 93mm outer diameter, 35mm center hole, and three mounting holes in a 90mm bolt pattern. Ideal for 250cc–300cc Chinese ATVs and motorcycles using the Jianshe or similar engine platform.

Specifications:

  • Brand: Jianshe (Genuine Parts)

  • Part Number: FG-842000-0

  • Outer Diameter: 93mm

  • Center Hole: 35mm

  • Mounting Bolt Pattern: 3-hole, 90mm

  • Coils: 18-pole configuration

  • Connector Setup: 5-wire harness (Black, Red, Green, Blue, White)

  • Includes: Integrated pickup coil & connectors

  • OEM Label: 定子 (stator in Chinese)

Compatibility:

  • Jianshe JS250 ATV

  • Other 250cc–300cc Chinese ATV & motorcycle models

  • Works with many Loncin, Zongshen, and Bashan engines

  • Confirm dimensions and plug type visually prior to purchase

Notes:
✔️ OEM fitment guaranteed for JS250ATV
✔️ Used in high-load charging applications
✔️ Stamped and bagged Jianshe original part

Additional information

Weight 3 lbs
